Consequential Sounds of Robots:
Effects on Human-Perception and
Properties of Sounds Affecting These Perceptions

Robots make machine sounds known as 'consequential sounds' as they move and operate. How do these sounds effect people's perception of robots and their desire to colocate with robots?

For this experiment, 182 participants experienced videos of 5 different robots, and answered questionnaires on their perception of the robots. Half the participants experienced the robot consequential sounds, whilst the other half formed the control group and experienced the same videos played completely silently.

Questionnaires used for this research can be found here.

Diversity of cohort characteristics for the 182 participants can be seen in the below figures.

For futher details on the experiment, see the above papers.

Consequential sounds are the unintentional noises that a machine produces itself as it moves and operates i.e 'sounds that are generated by the operating of the product itself'. In terms of robots, consequential sounds are the audible 'noises' produced by the actuators of the robot as the robot performs its normal operation, and the robot can not function without making these sounds.

Participants were exposed to 5 videos of robots which contained robot consequential sounds (CS condition) or were completely silent (control NS condition). A playlist of these 10 trial stimulus videos is available on Youtube.

Sound features (as heard in the videos) are visualised in the below spectrogram, which shows the frequency spectra of the sound stimuli used in the experiment. Each line represents a different robot/trial. The first 5 seconds display the environmental sound baseline, followed by a black strip no sound separator. The remaining 19-20 seconds are the sounds heard by participants (robot + environment sounds) for each trial. Sound intensities between rows have been scaled to allow comparison between robots.

This paper tests the following two hypotheses:

Hypothesis 1 (H1): Consequential sounds lead to more negative human perceptions of the robot such as: negative feelings (e.g. being uncomfortable), distraction, less willingness to colocate with robots, and/or disliking the robot.

Hypothesis 2 (H2): Some robots are perceived more negatively than other robots due to their consequential sounds.

Eleven Likert questions ranging from negative (1) to positive (7) perception were grouped into 4 thematic scales representing critical aspects of perception towards robots. The following scales were used for the analysis:

• 'associated-affect' (anxious, agitated, unsafe, uncomfortable) induced by the robot (4 questions)
• 'distracted' by the robot (1 question)
• desire to 'colocate' (home, workplace, public space) with the robot (3 questions)
• 'like' (physical appearance, movements of, overall) the robot (3 questions)

Least-squares linear regression was used to analyse the effect of the participant condition (sound versus no sound) and robot predictors on the 4 human-perception of robots scales. The interaction between the two predictors was initially included, with results showing that almost all interaction effects were non-significant p ∈ [.194, .934], except for two borderline significant effects for 'Associated Affect' (Quadrotor with sound) (β = -0.413, t = -1.98, p = .048) and 'Distracted' (Pepper with sound) (β = 0.447, t = 1.87, p = .061). Following best practices to improve model precision, the interaction effects were removed from the regression model as they were not significant.

Please see the paper for full details on the regression analysis methodology.

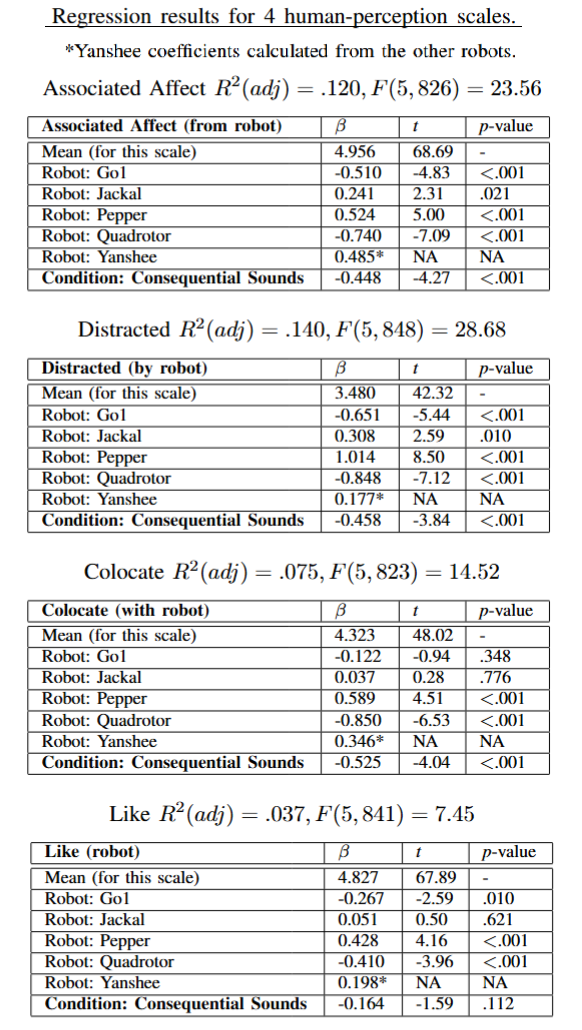

A summary table of regression results appears below. Detailed regression results can be downloaded here.

TLDR Research Findings

Hypothesis 1 is supported. Consequential sounds were found to significantly affect how people perceive the robots, leading to people feeling more distracted, experiencing stronger negative affects, and reducing desire to colocate with robots. However the presence of sound showed no significant effect on how much the robots were liked.

These significant negative human-perceptions of robots are likely to have an unwanted effect on robot adoption in shared spaces.

Hypothesis 2 had insufficient evidence to support it. H2 suggests that different robots will have a more extreme effect on human-perception due to their consequential sounds. The interaction effects between robot and condition showed only two borderline significant effects, 'associated affect' (Quadrotor with sound) and 'distracted' (Pepper with sound). Further research is required to understand the effects of consequential sounds at an individual robot level.

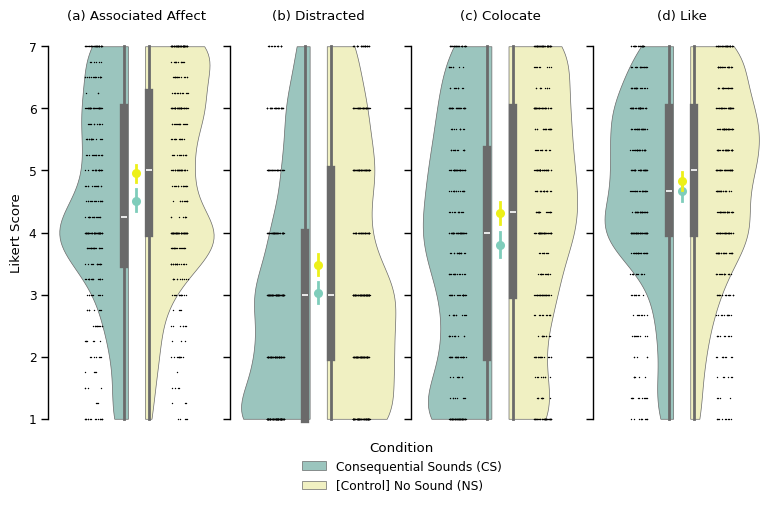

The below plots show the data distributions across robots and 'Consequential Sound' versus 'No Sound' (control) conditions for all 4 scales (a) 'Associated Affect' induced by the robot, (b) 'Distracted' by the robot, (c) 'Colocate' with the robot, and (d) 'Like' the robot. All scales are from (1) = negative perception to (7) = positive perception. Means (coloured dots) and 95% confidence intervals (vertical lines) are shown between condition pairs. Overlaid data-points show the scale values for each trial. As these were calculated from multiple questions, some points have Likert scores at 1/4 or 1/3 between integer values when scales included 4 or 3 questions respectively.

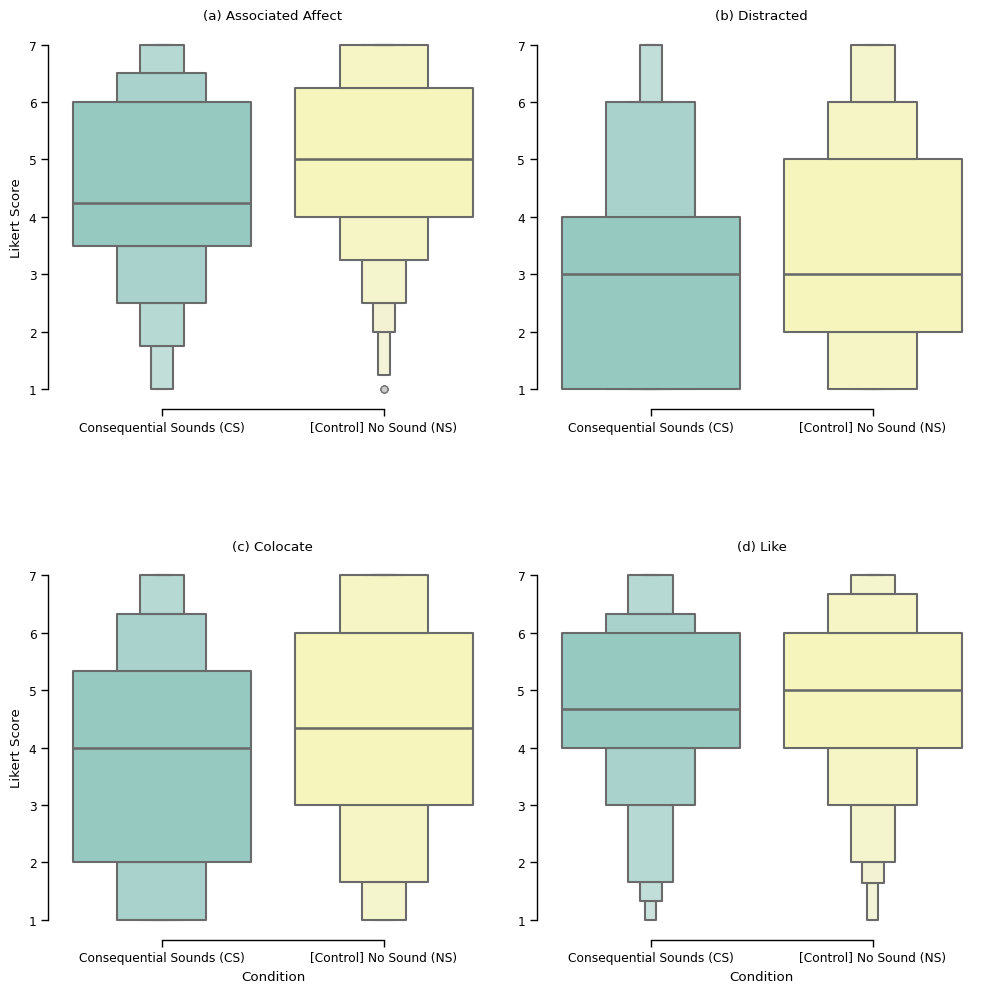

The below boxen plots provide alternate visualisations to suplement the above figures and main figures in the paper. Tails of distributions are shown as progressively smaller boxes. Dots represent outliers ranging from a single point (light dot) to small single-digit concentrations of outliers (darker dots).

Research Question 1 (RQ1): What properties of robot consequential sounds affect human-perceptions of robots, either negatively or positively?

Research Question 2 (RQ2): How would people prefer robots to sound instead?

Exploratory analysis of the qualitative data was conducted using NVivo QDA tool. Category analysis (topic modelling) methods were used to code the data on 3 dimensions - question priming, response valence and sound property topic code. Details on each dimension appear below.

Question Priming (2 codes):
Sound Primed versus General Questions (not specifically asking about sound)

Valence (4 codes):

• Dislike Existing Sounds
• Like Existing Sounds
• Avoid in Sounds (prefer robots not to make)
• Want Instead (prefer robots to make)

Sound Property (16 codes):
An iterative approach was used to uncover the sound property codes from the full set of qualitative responses. Firstly inductive coding was used across the data, using a combination of auto coding methods, word clouds, and manually reading responses. Domain knowledge was used to filter all uncovered codes to form 16 codes relevant to the research questions (see below graph of codes).

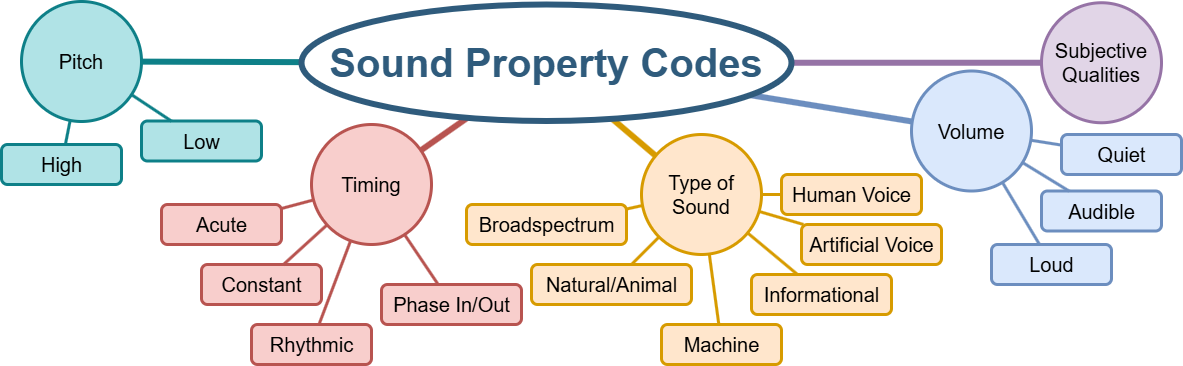

Sound Codes separated into 5 clusters of related properties

Using the above 3 dimensions, 35% of the data was manually coded, before autocoding the rest of the data, and finally checking samples for accuracy. Each coded reference was counted, forming a quantitative representation of participant views expressed in their qualitative comments.

TLDR Research Findings

Research findings provide the following insights for robot designers and researchers into promising robot consequential-sound profile changes for improvement of human-perception of robots and HRI:

• High pitched and loud sounds are disliked
• informational and audible sounds are preferred (over no sound) to provide predictability of purpose and trajectory of the robot
• Rhythmic sounds are preferred over acute or continuous sounds
• People want more natural sounds (such as wind or cat purrs) in-place of machine-like noise

The below two sets of plots help to visualise the above summary as well as many other insights.

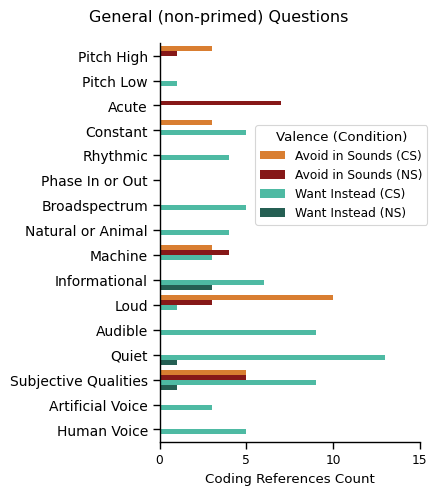

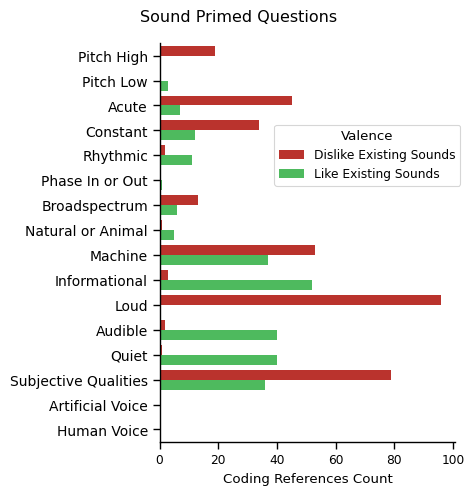

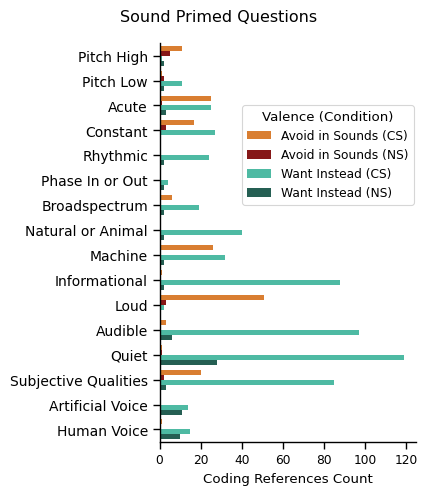

The following four plots separate responses by question priming (sound primed versus general) and whether participants were responding to existing robot consequential sounds (which sound properties are liked versus disliked) or providing preferences for how they would prefer robots to sound (properties to 'avoid' and what people 'want instead'). Preferences for how robots should sound are additionally separated by sound (CS) versus no-sound (NS) participant condition.

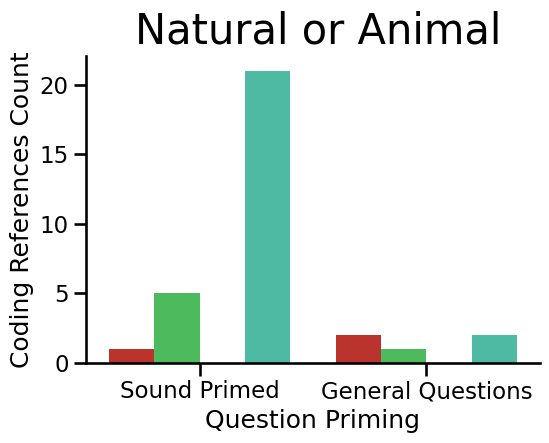

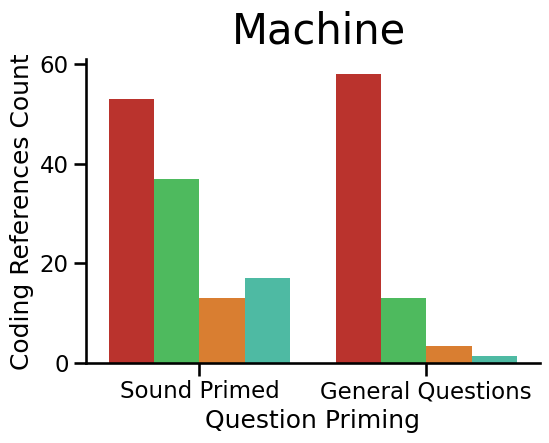

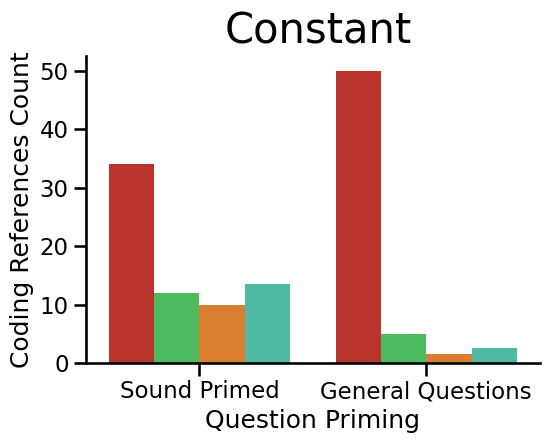

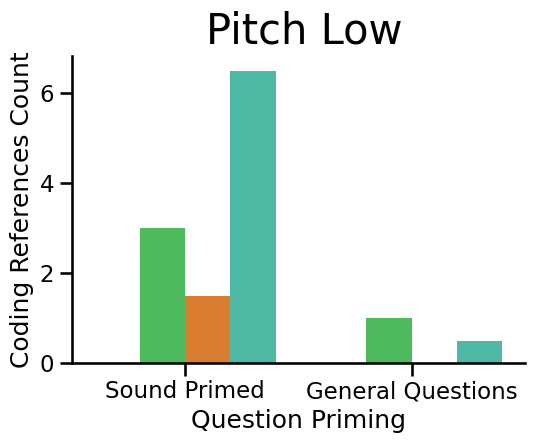

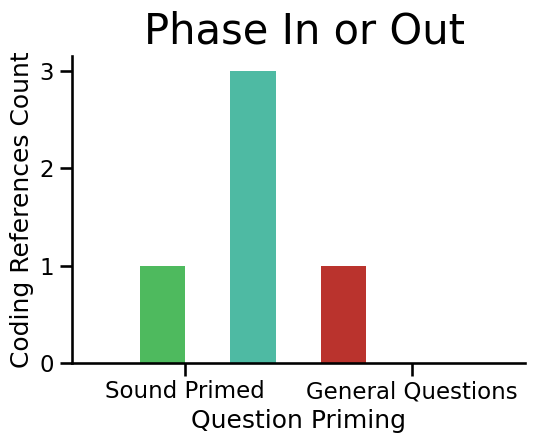

The following plots separate the same data presented in the paper into a separate graph for each of the 16 sound property codes, thus facilitating easy comparison of participant valences towards each sound property. These additional visualisations are supplementary to the main figures from the paper, and are presented to assist people when designing modifications for sounds produced by robots.

Pitch (Frequency)

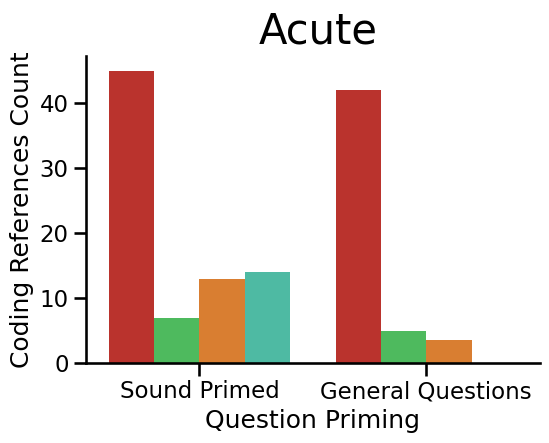

Timing of Sound

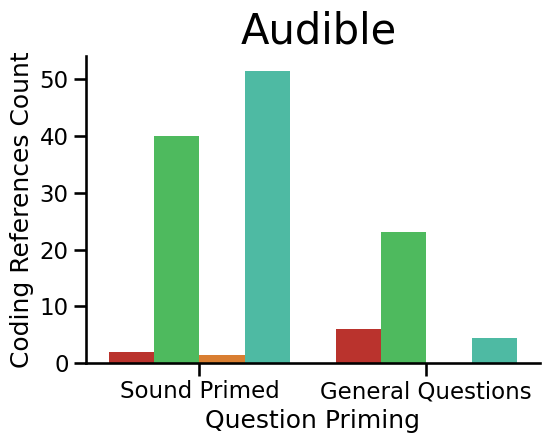

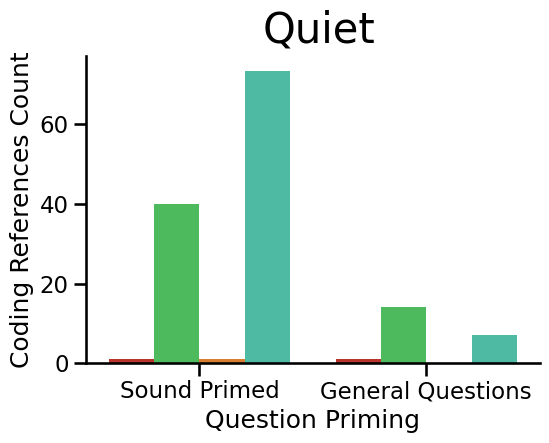

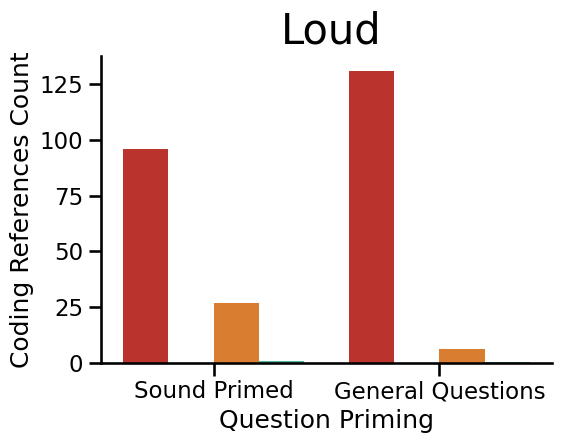

Volume (Intensity)

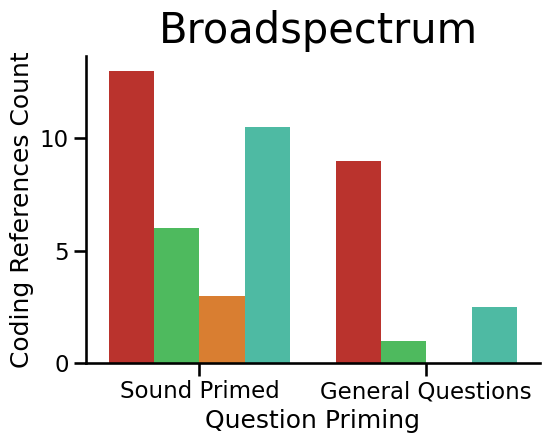

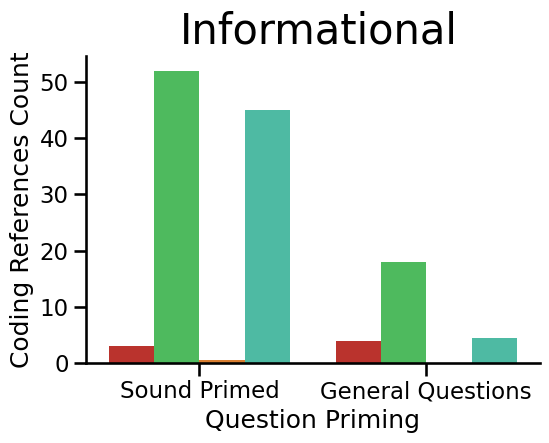

Type of Sound

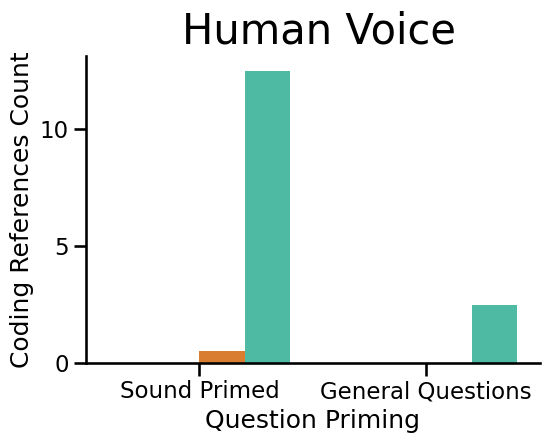

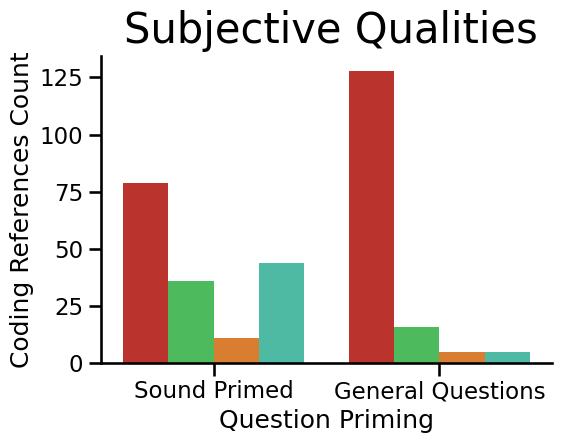

Voices and Subjective Qualities
